Adding text watermarks Leave feedback

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww
import groupdocs.watermark.common as gwc

with gw.Watermarker("sample.pdf") as watermarker:
    font = gww.Font("Arial", 19.0, gww.FontStyle.BOLD | gww.FontStyle.ITALIC)
    watermark = gww.TextWatermark("Test watermark", font)

    watermark.foreground_color = gww.Color.red
    watermark.background_color = gww.Color.blue
    watermark.text_alignment = gww.TextAlignment.RIGHT
    watermark.opacity = 0.5

    watermarker.add(watermark)
    watermarker.save("output.pdf")

If a document consists of multiple parts (pages, worksheets, slides, frames, etc.), the watermark will be added to each of them. You can configure this behavior via the PagesSetup property:

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww

with gw.Watermarker("sample.pdf") as watermarker:
    font = gww.Font("Arial", 19.0)
    watermark = gww.TextWatermark("Test watermark", font)

    watermark.pages_setup = gww.PagesSetup()
    watermark.pages_setup.pages = [1, 3]

    watermarker.add(watermark)
    watermarker.save("output.pdf")

Sizing and positioning of watermark

Absolute watermark positioning

You can add a watermark to an absolute position by setting x, y, width, and height. Values are measured in default document units.

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww

with gw.Watermarker("image.png") as watermarker:
    font = gww.Font("Times New Roman", 8.0)
    watermark = gww.TextWatermark("Test watermark", font)

    watermark.x = 10
    watermark.y = 20
    watermark.width = 100
    watermark.height = 40

    watermarker.add(watermark)
    watermarker.save("image.png")

Warning
Note that the origin of coordinates may be different for different document types (relative positioning doesn’t have these specifics and can be used as a unified positioning approach).

Following are the origin of the coordinates for different formats of the documents.

Document Format	Unit of Measure	Origin of Coordinates
PDF	Point	Left bottom corner of page
WordProcessing	Point	Left top corner of page
Spreadsheet	Point	Left top corner of worksheet
Presentation	Point	Left top corner of slide
Image	Pixel	Left top corner of image (frame)
Diagram	Point	Left top corner of page

Relative watermark positioning

Instead of exact coordinates, use parent-relative alignment and set offsets with margins.

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww
import groupdocs.watermark.common as gwc

with gw.Watermarker("image.png") as watermarker:
    font = gww.Font("Calibri", 12.0)
    watermark = gww.TextWatermark("Test watermark", font)
    watermark.horizontal_alignment = gwc.HorizontalAlignment.RIGHT
    watermark.vertical_alignment = gwc.VerticalAlignment.BOTTOM

    watermark.margins.right = 10
    watermark.margins.bottom = 5

    watermarker.add(watermark)
    watermarker.save("image.png")

Warning
Excel worksheets don’t have explicit borders, therefore, the most right bottom non-empty cell is used to determine working area size.

Using the MarginType property

Set relative margins using MarginType, where values are interpreted as a portion of the parent size (0.0–1.0).

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww
import groupdocs.watermark.common as gwc

with gw.Watermarker("image.png") as watermarker:
    font = gww.Font("Calibri", 12.0)
    watermark = gww.TextWatermark("Test watermark", font)
    watermark.horizontal_alignment = gwc.HorizontalAlignment.RIGHT
    watermark.vertical_alignment = gwc.VerticalAlignment.BOTTOM

    watermark.margins.margin_type = gww.MarginType.RELATIVE_TO_PARENT_DIMENSIONS
    watermark.margins.right = 0.1
    watermark.margins.bottom = 0.2

    watermarker.add(watermark)
    watermarker.save("image.png")

Size types

Scale watermark depending on the parent size using sizing_type and scale_factor.

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww

with gw.Watermarker("image.png") as watermarker:
    font = gww.Font("Calibri", 12.0)
    watermark = gww.TextWatermark("This is a test watermark", font)

    watermark.sizing_type = gww.SizingType.SCALE_TO_PARENT_DIMENSIONS
    watermark.scale_factor = 0.5

    watermarker.add(watermark)
    watermarker.save("image.png")

Note
Using of relative size and positioning is the simplest way to add watermark to a document of any type.

Watermark rotation

Rotate watermark by setting rotate_angle in degrees. Positive values mean clockwise.

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww
import groupdocs.watermark.common as gwc

with gw.Watermarker("test.docx") as watermarker:
    font = gww.Font("Calibri", 8.0)
    watermark = gww.TextWatermark("Test watermark", font)
    watermark.horizontal_alignment = gwc.HorizontalAlignment.RIGHT
    watermark.vertical_alignment = gwc.VerticalAlignment.TOP
    watermark.sizing_type = gww.SizingType.SCALE_TO_PARENT_DIMENSIONS
    watermark.scale_factor = 0.5
    watermark.rotate_angle = 45

    watermarker.add(watermark)
    watermarker.save("test.docx")

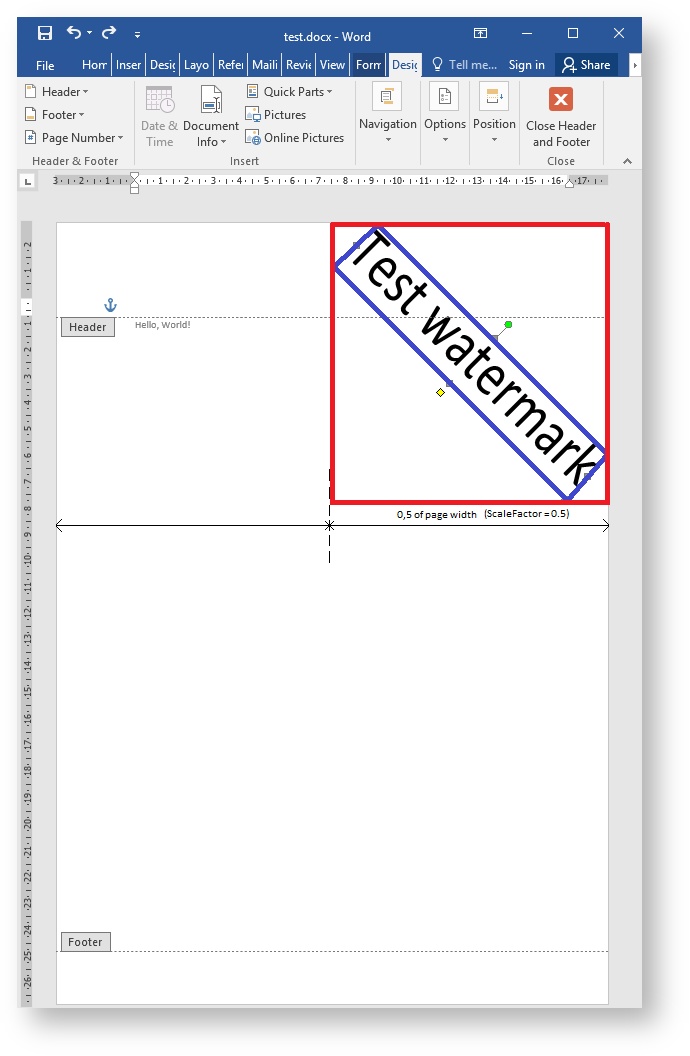

If rotation angle is set, it is assumed that watermark size is equal to axis-aligned bounding box size. The following picture illustrates what is the watermark bounding box and how it is used for sizing and positioning. The picture shows a result of execution of the above code snippet. The actual watermark bounds are colored in blue and the bounding box is colored in red. As you can see, the bounding box size is used to calculate watermark relative size.

adding-text-watermarks

Using custom fonts

You can use custom TrueType fonts by specifying a folder path in the Font constructor.

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww

fonts_folder = r"c:\\CustomFonts\\"
with gw.Watermarker("test.pdf") as watermarker:
    font = gww.Font("CustomFontName", fonts_folder, 36.0)
    watermark = gww.TextWatermark("Test watermark", font)

    watermark.foreground_color = gww.Color.blue
    watermark.opacity = 0.5
    watermark.x = 10
    watermark.y = 10

    watermarker.add(watermark)
    watermarker.save("result.pdf")

Considering parent margins

By default, page margins are ignored and the maximum available space is used. To align with page margins, set consider_parent_margins to True.

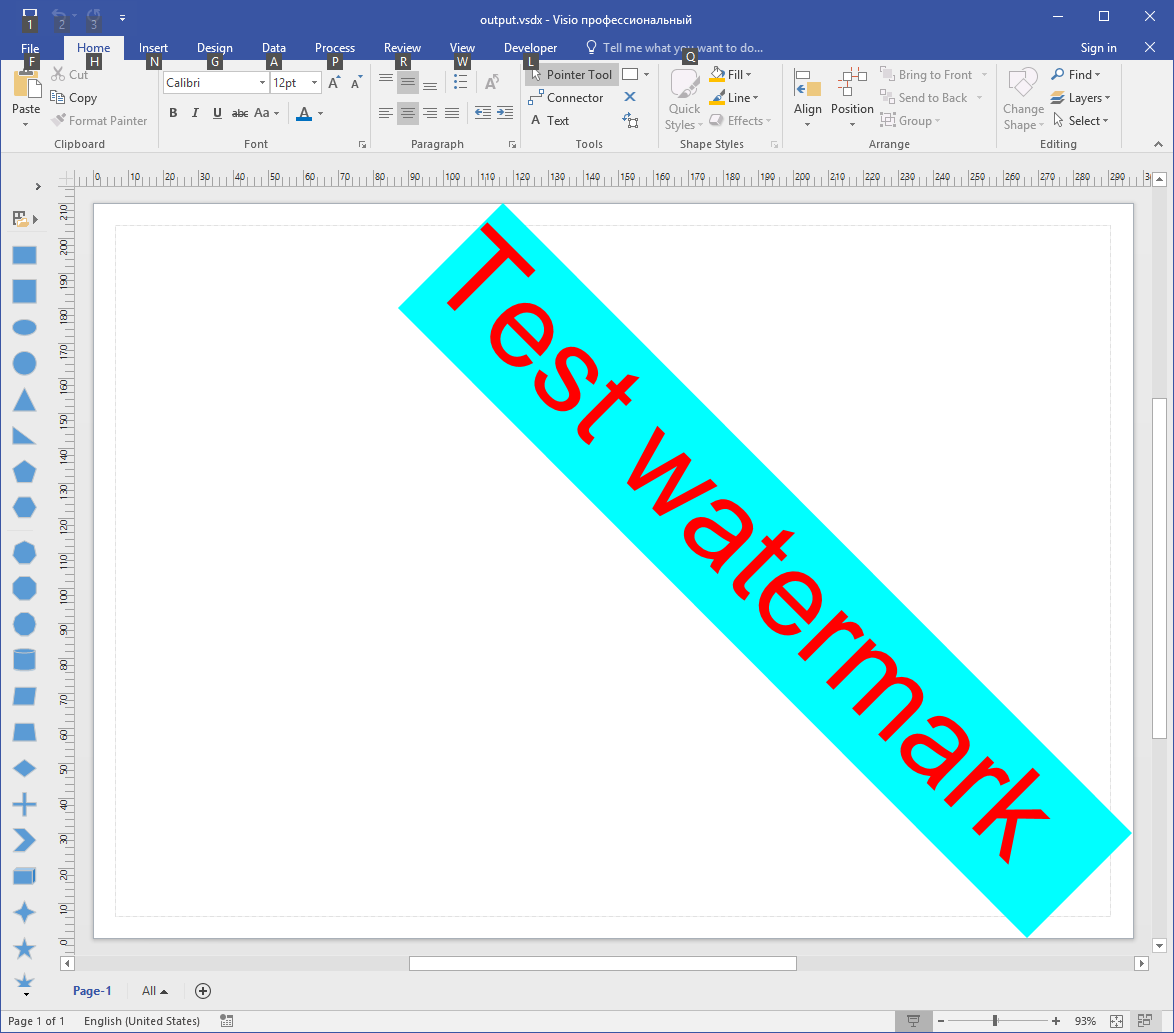

adding-text-watermarks_1

As you can see, the watermark goes beyond page margins. To change this behavior, set ConsiderParentMargins property to true (as shown in below example).

import groupdocs.watermark as gw
import groupdocs.watermark.watermarks as gww
import groupdocs.watermark.common as gwc

with gw.Watermarker("input.vsdx") as watermarker:
    watermark = gww.TextWatermark("Test watermark", gww.Font("Arial", 42.0))
    watermark.horizontal_alignment = gwc.HorizontalAlignment.RIGHT
    watermark.vertical_alignment = gwc.VerticalAlignment.TOP
    watermark.sizing_type = gww.SizingType.SCALE_TO_PARENT_DIMENSIONS
    watermark.scale_factor = 1.0
    watermark.rotate_angle = 45
    watermark.foreground_color = gww.Color.red
    watermark.background_color = gww.Color.aqua
    watermark.consider_parent_margins = True

    watermarker.add(watermark)
    watermarker.save("input.vsdx")

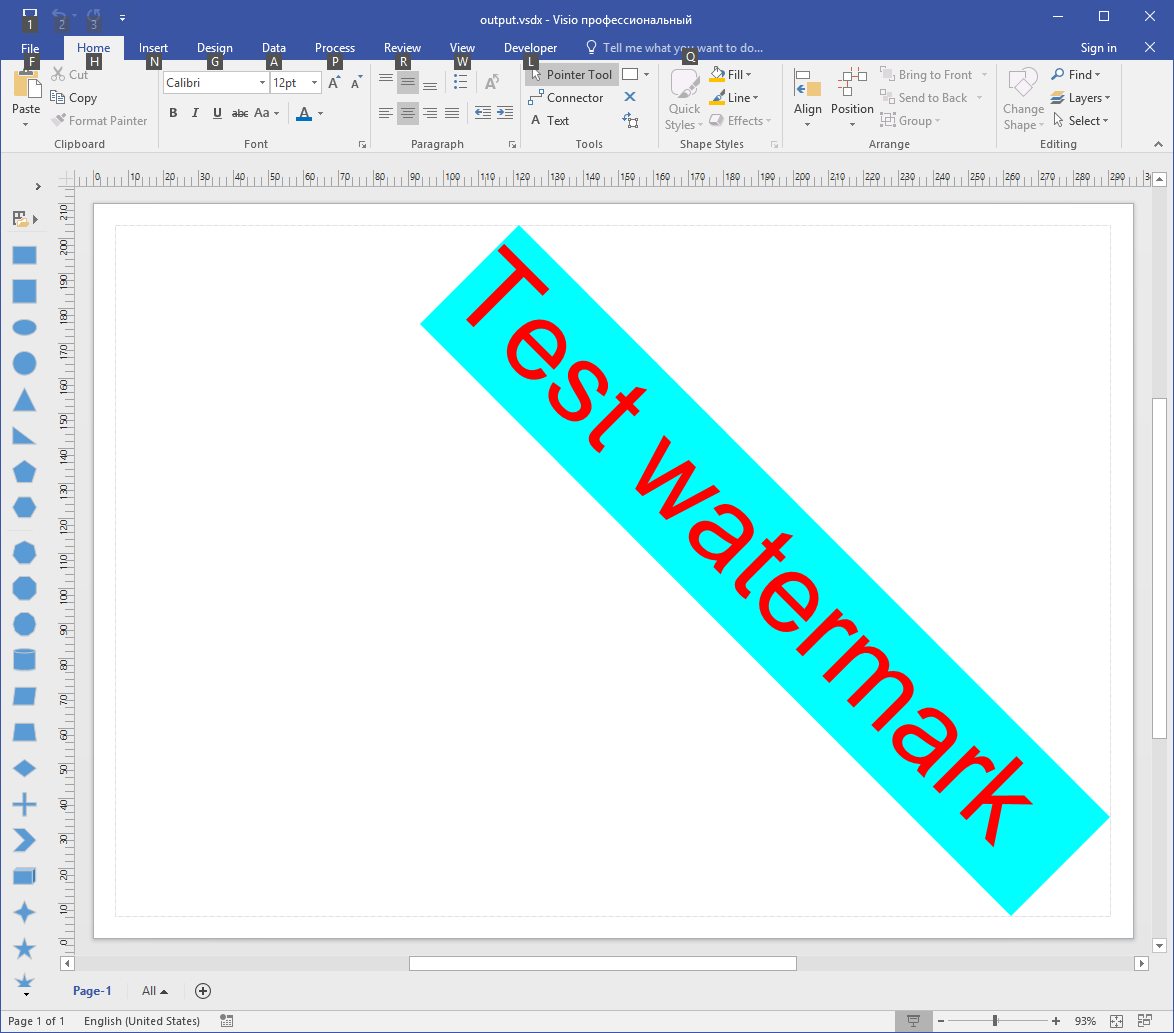

Now, the watermark is aligned with respect to page margins.

adding-text-watermarks_2

Watermark in documents of different types

Watermarks are represented by different objects in different formats. Some properties may not be supported for specific formats (for example, background color for WordArt in Word documents). See Features Overview for details.
