5 Secure Methods to Add Watermarks to Word Documents Leave feedback

Microsoft Word’s built-in watermark feature provides minimal document protection—anyone can remove standard watermarks by double-clicking the header and pressing delete. This guide demonstrates five professional watermarking methods using GroupDocs.Watermark for .NET, ranging from basic header watermarks to advanced password-protected solutions that resist removal attempts.

What you’ll learn:

• Why standard Word watermarks fail to protect sensitive documents
• How to implement 5 increasingly secure watermarking techniques with code examples
• When to use each protection level based on your security requirements
• Visual demonstrations of each method’s effectiveness

Standard Microsoft Word watermarks have a critical security flaw: they’re stored as simple shape objects in document headers. Any user can:

1. Double-click the header area to enter edit mode
2. Select the watermark shape
3. Press Delete to remove it completely

This makes built-in watermarks unsuitable for:

• Confidential business documents
• Legal contracts and agreements
• Copyright-protected materials
• Documents requiring compliance controls

GroupDocs.Watermark for .NET solves this problem by providing programmatic watermarking with multiple protection levels.

Note

For the complete working code and detailed explanations, please refer to the full repository here.

Protect-Word-Documents-using-GroupDocs.Watermark-for-.NET/
│
├── GroupDocs.Watermark-for-.NET-Word-Protection-Sample.csproj  # .NET 6 project file
├── Program.cs                                                  # Entry point: runs protection routines
│   ├── AddSimpleHeaderWatermark                                # Basic watermark in header
│   ├── AddTiledWatermark                                       # Repeated tiled watermark
│   ├── AddTiledImageWatermark                                  # Repeated tiled image watermark
│   ├── AddLockedSectionWatermark                               # Password-protected hidden section
│   └── AddLockedHeaderWatermark                                # Locked header + editable content
├── Resources/                                                  # Input/output test files(create
|                                                                   this folder where you need)
└── README.md                                                   # This documentation

Protection Level: Low | Difficulty: Easy | Best For: Internal documents, drafts

This method inserts a watermark into the document header as a shape object. While easy to implement, it offers minimal protection and can be removed by editing the header.

private static void AddSimpleHeaderWatermark()
{
    Console.WriteLine("Adding simple header watermark...");
    var loadOptions = new WordProcessingLoadOptions();
    using (var watermarker = new Watermarker(InputFile, loadOptions))
    {
        var watermark = new TextWatermark("Confidential", new Font("Arial", 19))
        {
            VerticalAlignment = VerticalAlignment.Center,
            HorizontalAlignment = HorizontalAlignment.Center,
            RotateAngle = 25,
            ForegroundColor = Color.Red,
            Opacity = 0.8
        };
        watermarker.Add(watermark);
        watermarker.Save(Path.Combine(OutputDir, "header_watermark.docx"));
    }
    Console.WriteLine("Header watermark added.");
}

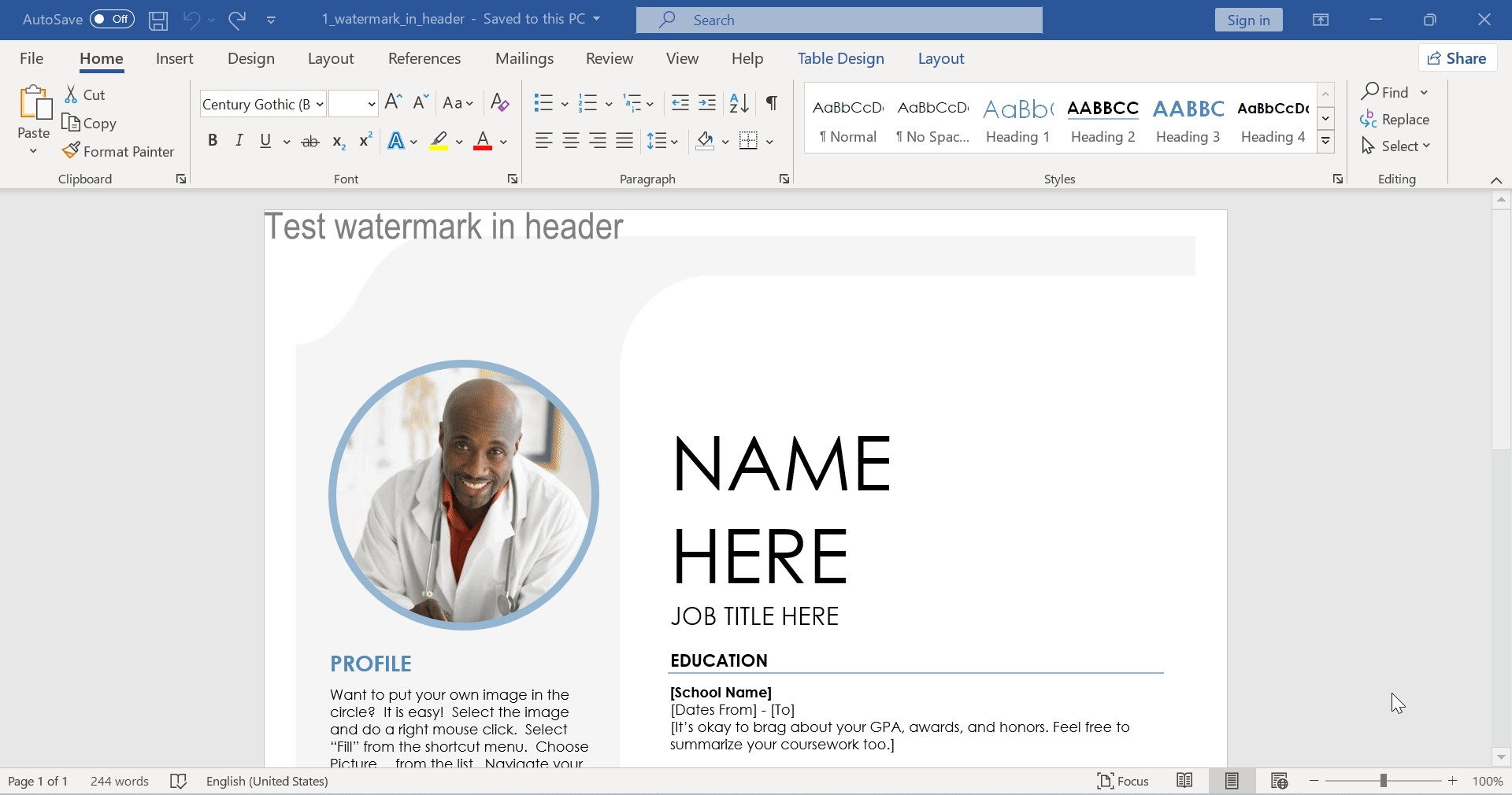

Watch how easily it’s removed:

• Vulnerability: Can be deleted by double-clicking the header and selecting the watermark shape
• Use Case: Quick internal documents where high security isn’t required
• Advantage: Simple to implement with minimal code

Protection Level: Medium | Difficulty: Easy | Best For: Multi-page documents requiring moderate security

Tiled watermarks create multiple instances across each page, making manual removal tedious and time-consuming. This method provides effective deterrence for documents longer than a few pages.

private static void AddTiledWatermark()
{
    Console.WriteLine("Adding tiled watermark...");
    var loadOptions = new WordProcessingLoadOptions();
    using (var watermarker = new Watermarker(InputFile, loadOptions))
    {
        var watermark = new TextWatermark("Protected Document", new Font("Arial", 19))
        {
            VerticalAlignment = VerticalAlignment.Center,
            HorizontalAlignment = HorizontalAlignment.Center,
            RotateAngle = 25,
            ForegroundColor = Color.Red,
            Opacity = 0.9,
            TileOptions = new TileOptions
            {
                LineSpacing = new MeasureValue
                {
                    MeasureType = TileMeasureType.Percent,
                    Value = 12
                },
                WatermarkSpacing = new MeasureValue
                {
                    MeasureType = TileMeasureType.Percent,
                    Value = 12
                }
            }
        };
        var options = new WordProcessingWatermarkSectionOptions
        {
            Name = "TiledShape",
            AlternativeText = "Repeated watermark"
        };
        watermarker.Add(watermark, options);
        watermarker.Save(Path.Combine(OutputDir, "tiled_watermark.docx"));
    }
    Console.WriteLine("Tiled watermark added.");
}

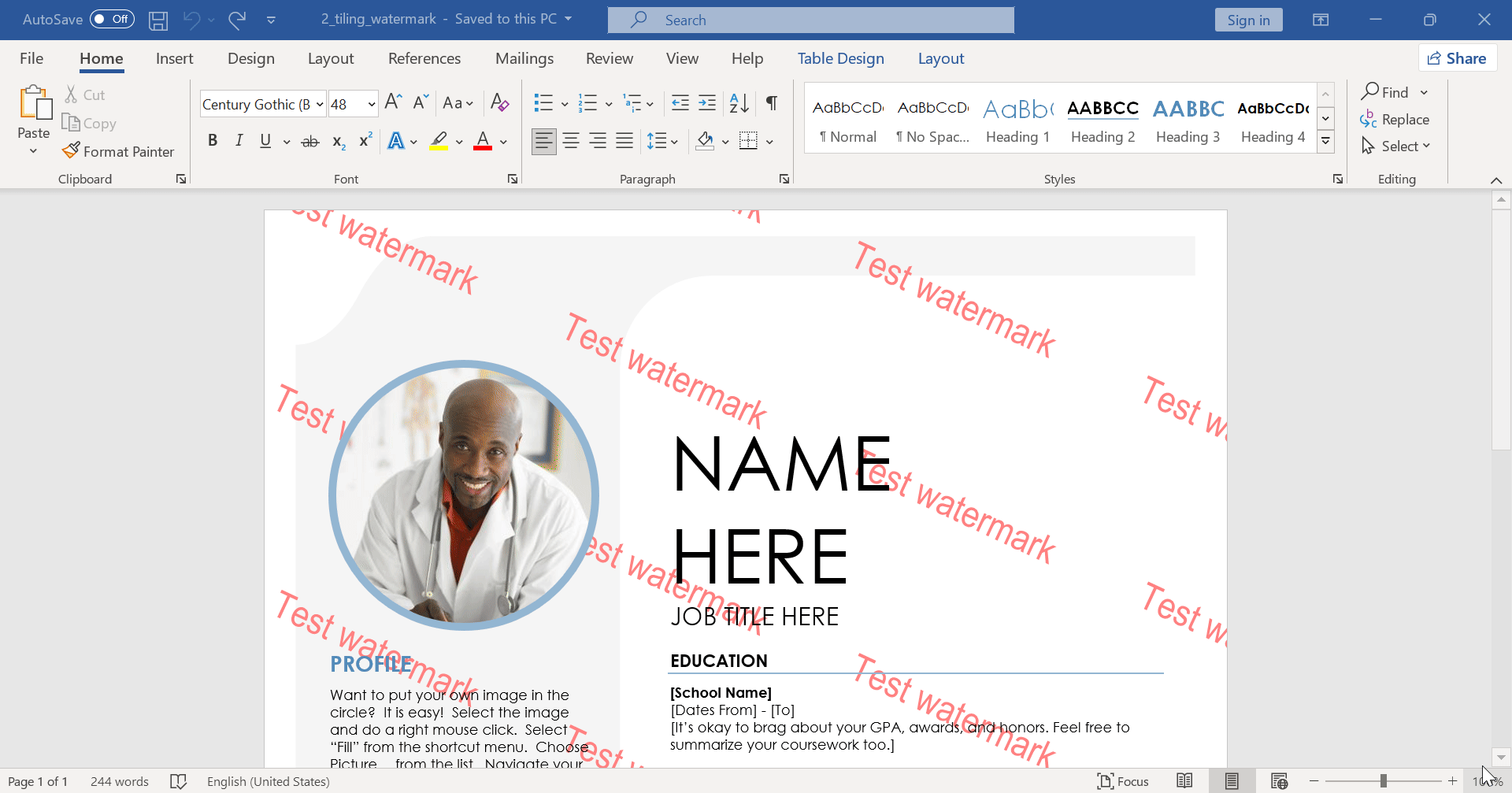

See the tiled protection in action:

• Multiple Instances: Creates 15-20+ watermark copies per page
• Spacing Control: Customize LineSpacing and WatermarkSpacing as percentages
• Removal Deterrent: Deleting all instances becomes impractical for multi-page documents
• Ideal For: Contracts, proposals, client-facing documents

Protection Level: Medium-High | Difficulty: Easy | Best For: Brand protection, copyright claims

Image watermarks use company logos, signatures, or custom graphics instead of text. When tiled, they create a professional security layer that’s harder to replicate than simple text.

private static void AddImageWatermark()
{
    using (Watermarker watermarker = new Watermarker(InputFile))
    {
        // Create the image watermark object
        var watermark = new ImageWatermark("logo.png");

        // Configure tile options
        watermark.TileOptions = new TileOptions()
        {
            LineSpacing = new MeasureValue()
            {
                MeasureType = TileMeasureType.Percent,
                Value = 10
            },
            WatermarkSpacing = new MeasureValue()
            {
                MeasureType = TileMeasureType.Percent,
                Value = 8
            },
        };

        // Set watermark properties
        watermark.Opacity = 0.7;
        watermark.RotateAngle = -30;

        // Add watermark
        watermarker.Add(watermark);
        watermarker.Save(Path.Combine(OutputDir, "image_watermark_word.docx"));
    }
}

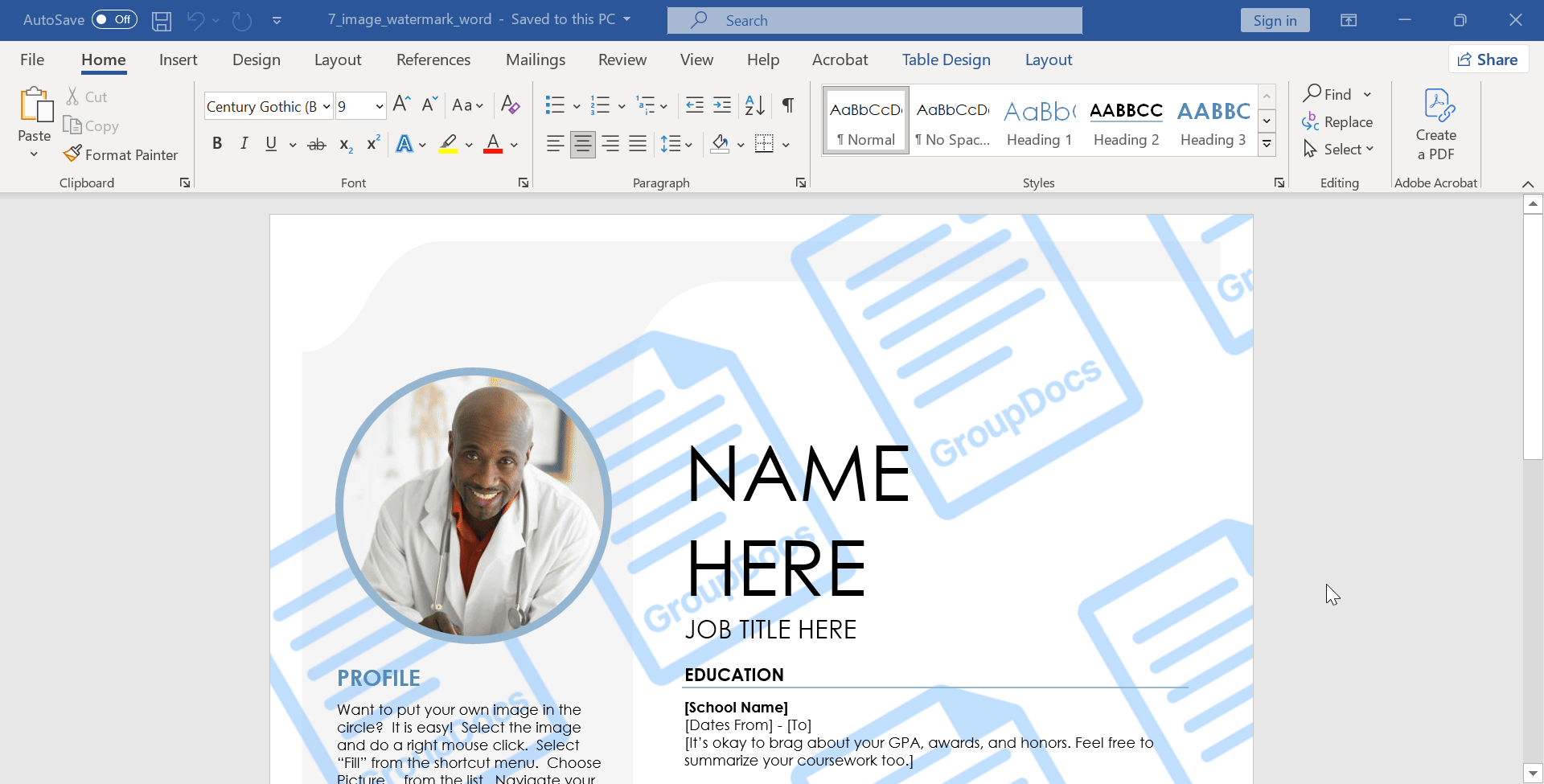

See the professional image watermark in action:

• Unique Visual Elements: Logos and graphics are harder to recreate than text
• Brand Authentication: Company seals and official stamps establish document authenticity
• Supported Formats: PNG, JPG, and other image formats
• Professional Appearance: Maintains document aesthetics while providing protection

Protection Level: High | Difficulty: Medium | Best For: Confidential documents requiring strong security

This advanced technique places the watermark in a password-protected section configured for “form fields only” mode. Users cannot edit or remove the watermark without the password.

private static void AddLockedWatermark_AllowOnlyFormFields()
{
    Console.WriteLine("Adding locked watermark (allow form fields)...");
    using (var watermarker = new Watermarker(InputFile))
    {
        var watermark = new TextWatermark("Do Not Edit",
        new Font("Arial", 36, FontStyle.Bold | FontStyle.Italic))
        {
            HorizontalAlignment = HorizontalAlignment.Center,
            VerticalAlignment = VerticalAlignment.Center,
            Opacity = 0.4,
            RotateAngle = 45,
            ForegroundColor = Color.Red
        };

        var options = new WordProcessingWatermarkPagesOptions
        {
            IsLocked = true,
            Password = "012345",
            LockType = WordProcessingLockType.AllowOnlyFormFields
        };

        watermarker.Add(watermark, options);
        watermarker.Save(Path.Combine(OutputDir, "locked_allow_form_fields.docx"));
    }
    Console.WriteLine("Locked watermark added (AllowOnlyFormFields).");
}

Watch the locked header protection:

• IsLocked: Set to true to enable password protection
• Password: Choose a strong password for document protection
• LockType: Use AllowOnlyFormFields to restrict editing
• Use Case: Legal documents, financial reports, intellectual property

When using password-protected sections, the hidden section occupies space in the document structure. For documents that completely fill available space, this may cause layout issues such as extra blank pages.

Protection Level: Very High | Difficulty: Medium | Best For: Documents requiring both security and user interaction

This sophisticated approach locks the header section (containing the watermark) while allowing specific document areas to remain editable. It combines maximum watermark security with controlled user access.

private static void AddLockedHeaderWatermark()
{
    Console.WriteLine("Adding locked header watermark...");
    var loadOptions = new WordProcessingLoadOptions();
    using (var watermarker = new Watermarker(InputFile, loadOptions))
    {
        var watermark = new TextWatermark("Company Confidential", new Font("Arial", 19))
        {
            VerticalAlignment = VerticalAlignment.Center,
            HorizontalAlignment = HorizontalAlignment.Center,
            RotateAngle = 25,
            ForegroundColor = Color.Red,
            Opacity = 0.8
        };

        var options = new WordProcessingWatermarkSectionOptions
        {
            SectionIndex = 0,
            IsLocked = true,
            Password = "012345",
            LockType = WordProcessingLockType.ReadOnly
        };

        watermarker.Add(watermark, options);
        watermarker.Save(Path.Combine(OutputDir, "locked_header_watermark.docx"));
    }
    Console.WriteLine("Locked header watermark added.");
}

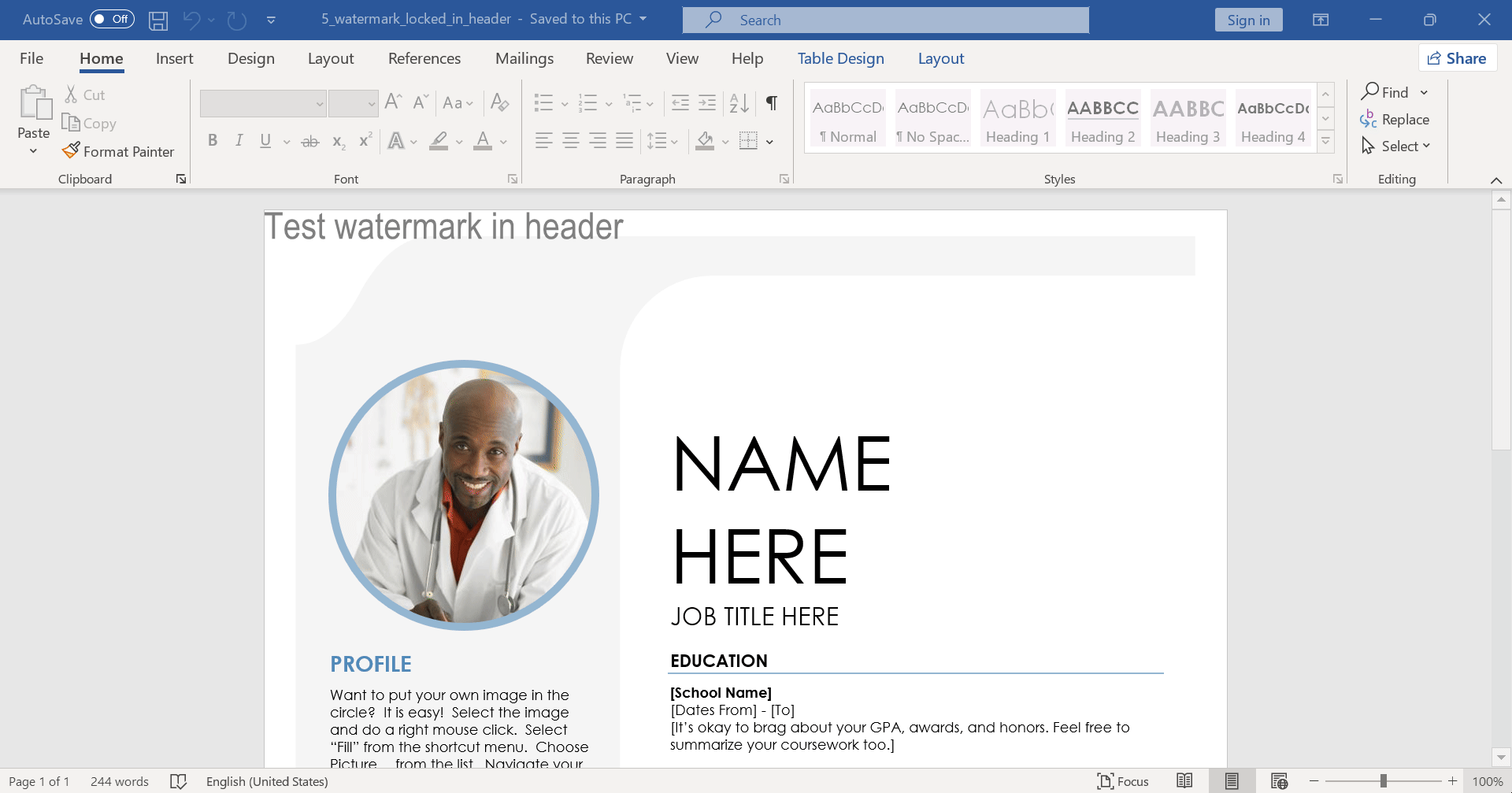

Watch the locked header protection:

1. Header Protection: The entire header section is locked with read-only protection
2. Password Security: Requires authentication to modify the watermark
3. Editable Ranges: Document body sections can be marked as editable
4. Granular Control: Different users can be assigned different editing permissions

When documents with editable ranges are opened in Microsoft Word, editable sections appear highlighted in yellow. This visual indicator helps users identify where they can type, but may affect the document’s professional appearance in some contexts.

• Template documents with fixed branding
• Forms requiring user input
• Collaborative documents with protected headers
• Scenarios requiring granular editing permissions

Q: Does adding watermarks increase file size?
A: Yes, but minimally. Simple header watermarks add negligible size. Tiled watermarks add more due to multiple shape objects, but the increase is typically under 5% for text watermarks.

Q: Can I watermark other file formats?
A: Yes. GroupDocs.Watermark for .NET supports 40+ file formats including PDF, Excel, PowerPoint, images, and more.

Q: Do I need Microsoft Word installed?
A: No. GroupDocs.Watermark is a standalone .NET library that works independently of Microsoft Office.

Q: Can users still print watermarked documents?
A: Yes. Watermarks remain visible in printed copies unless you configure them otherwise using opacity and visibility settings.

Q: How do I remove password protection for testing?
A: During development, use simple passwords like “012345” as shown in examples. For production, implement secure password management.

Microsoft Word’s built-in watermarks are insufficient for documents requiring real security. GroupDocs.Watermark for .NET provides five progressively secure protection methods, from simple header watermarks for internal use to advanced password-protected solutions for confidential documents.

Choose the protection level that matches your document’s sensitivity:

• Use simple headers for low-risk internal documents
• Implement tiled watermarks for contracts and proposals
• Apply password protection for confidential business documents
• Deploy locked headers with editable ranges for templates and collaborative documents

Not every file needs maximum security, but critical documents deserve more than Word’s easily-removable watermarks. Start protecting your documents today with GroupDocs.Watermark for .NET.
